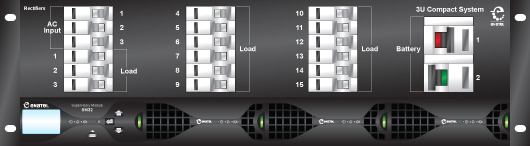

3U Compact System 1.0 - 6.0kW 48V DC
 |
| |
3U
compact system. |
48V
nominal output voltage. |
6.0kW
maximum output power. |
 |
|
|
| |
AC Input |
Three phase or single phase. (refer to RM series brochures for full details) |
Frequency Range |
45-66Hz |
Power Factor |
>0.99 (full load) |
Termination |
Three phase L1, L2, L3, N, E 6mm2 terminal blocks.
(Single phase by linking line terminals) |
| Protection |
20A circuit breaker provided per rectifier. |
DC Output |
|
Nominal Voltage |
-48V |
Rated System Output Power |
6000W |
Polarity |
Positive earth. (negative earth available to special order) |
DC Distribution |
Load: 5x 10A, 4x 20A, 4x 32A, 2x 50A load circuit breakers.
Battery: 2x 100A battery circuit breakers. |
Breaker Fail Detection |
Electronic fail detection on both load and battery breakers. |
DC Terminals (rear connected) |
Load: 10A, 6mm2 tunnel terminals. 32A, 10mm2
tunnel terminals.
50A, 16mm2 tunnel terminals.
Battery: 35mm2 tunnel terminals. |
| Low Voltage Disconnect |
125A battery LVD fitted as standard. |
Mechanical |
|
Dimensions, W, H, D |
482.6mm (standard 19� module), 133.3mm (3U, 5¼�), 350mm (13¾�) (390mm with cable strain relief) |
Weight |
11.5kg (excluding rectifier modules) |
| Monitoring & Control |
Various monitoring options are available via the Enatel SM30 series of control & supervisory modules. Standard features include full temperature compensation, automated and manual battery testing/equalisation and three voltage-free relay alarm outputs. Options include extension I/O PCBs that give an extra 6x digital inputs, 6x analogue inputs and 8x voltage-free relay outputs. For further details, refer to the SM30 series brochures. |
|
| |
| Not all systems are available in all markets, please contact us for any further information. Due to product development specifications are subject to change without prior notice. Pictures may be representative, actual products may differ. |
| |
 |
